The ZXMMC interface, together with the +3e ROMs, allows the ZX Spectrum +2A, +2B, and +3 to use MMC, SD, and SDHC cards as mass storage devices. SDHC cards larger than 8 GB are supported, but only the first 8 GB can be used.

The interface is accessed directly from the Spectrum’s BASIC and operates in a similar way to an 8-bit IDE interface. Unlike the IDE interface, however, the ZXMMC can use the full capacity of the supported storage media thanks to its 16-bit addressing.

Its compact design allows for a clean and straightforward installation, with no cables or soldering required.

Includes +3e ROM set.

ZXMMC + 3e ROM Set

Name: ZXMMC + 3e ROM Set
Price: 60 EUR
Availability: InStock

€60.00

+3e ROM Language

Quantity

The ZXMMC interface together with the +3e ROMS, provides the Spectrum +2a-b/+3 with the ablility to use MMC/SD/SDHC cards (limited to 8GB usable space on large cards) as mass storage media directly from the Spectrum's BASIC. Its operation is basically the same as the 8-bit IDE interface with the adventage the ZXMMC uses all storage media capacity (16 bit addressing). Also, its reduced form factor helps for a easy and clean installation without cables or soldering.

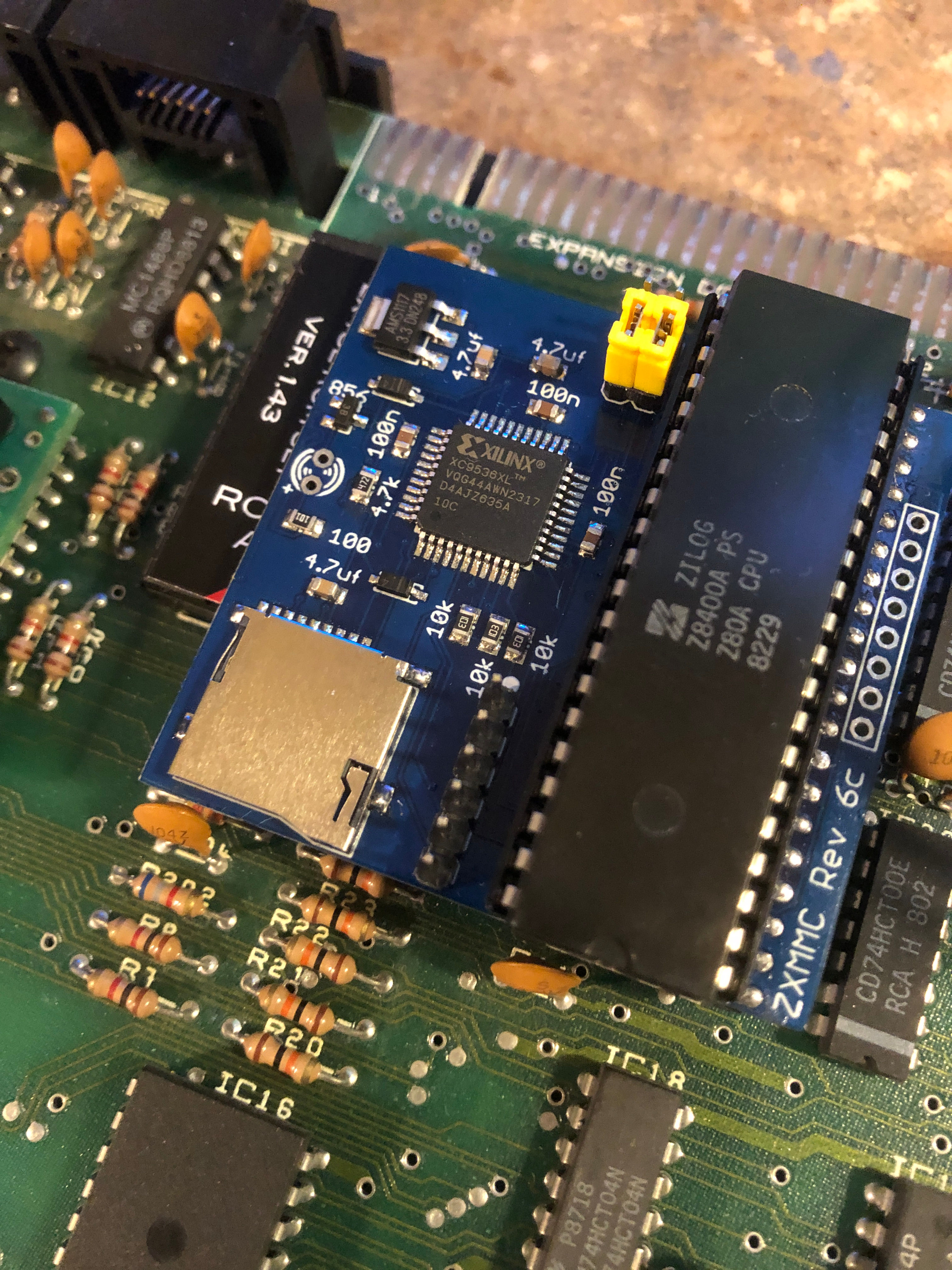

The ZXMMC Rev.6 features one push-push micro-sd slot. It is possible to use any arduino SD module as a second SD unit, giving the ability to use two SD cards simultaneously (up to 4gb max per card).

Z80 CPU and activity LED not included!
Compatible with ZX Spectrum +2a/b (black) and +3 (FDD)

x1 micro SD slot

Pin header for external SD slot

Supports MMC/SD/SDHC memory cards

Configurable storage unit ID (0, 1)

Includes +3e ROM set (two ROM chips)

Does not includes the LED wire, nor SD card or the Z80 CPU.

Attention, requires +3e ROM set to be installed in the computer.
