MT32-Pi Sound Module. 80s classic Roland MT32 emulator.



Attention: does not includes the SD card nor the power supply.



More details can be found at the official github site:

https://github.com/dwhinham/mt32-pi

  • PRODUCT INFO

    The MT32-Pi its a Raspberry Pi based device which emulates the classic Roland MT32 sound module from the 80s. It can run as a standard MT32 or use soundfonts as alternative sound banks.



    It consist on a "hat" board which plugs on the Raspberry Pi GPIO port providing MIDI/Audio I/O, OLED display and physical buttons. The Raspberry Pi runs a baremetal MT32 emulator from the SD card.



    It can be conncted through a standard MIDI connector (DIN 5) to a PC, Amiga, Atari ST or any other device with MIDI support (Keyboards, sequencers, etc). Many classic games from the 80s and 90s supports the MT32 out of the box (notably Sierra and Lucas Arts and many more games such as Doom).

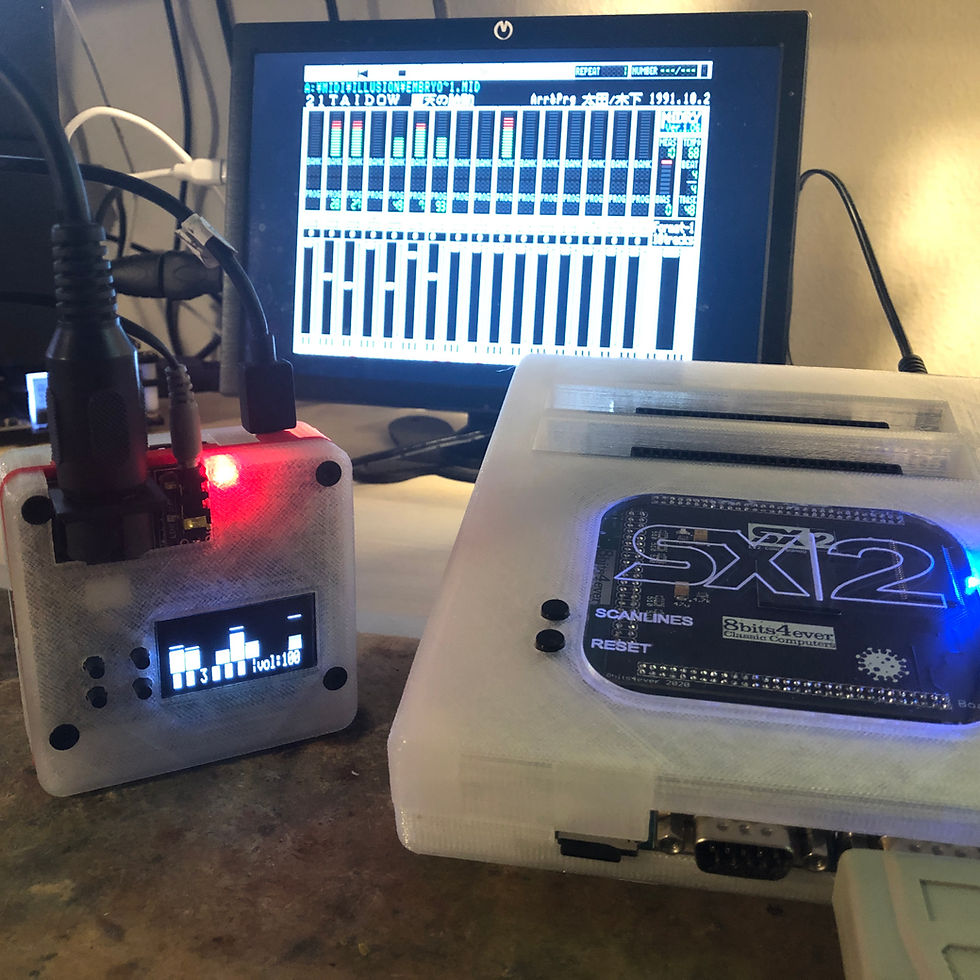

    It is of course compatible with our MiSS FPGA running Amiga, Atari ST and PC cores and also with our SX-2 MSX FPGA (custom adapter cable needed).



    The unit is available complete, including a Raspberry Pi 3A+ or just the hat, case and screws (in case you already have a R-Pi 3A+). Please notice the case will only fit a Raspberry Pi 3A+.



  • TECH SPECS

    • Standard MIDI-IN, DIN 5 Connector
    • DAC Stereo Output
    • OLED Display
    • 3D printed case
    • Available with or without the Raspberry Pi 3A+



    SD setup image available for download.



    Attention! The Raspberry Pi has high power requirements. You will need to use a Raspberry Pi power supply or similar.

  • RETURN AND REFUND POLICY

    In order to get a replacement or refund defective units must first be returned. Once the item has been inspected we will proceed to replace the unit or refund the payment. Items that have been damaged by careless/unadecuated use or modifyied by the buyer in any way will not be elegible for replace or refund of any kind.

€45.00Price
